HONYX TECH: precision deep-drawn and stamped metal components

Precision metal components and tooling plates arranged on a dark technical platform

Precision deep drawing

Deep-drawn components formed to your drawing

Sleeves, bushings, end covers and casings drawn in one piece, from sample review through production in Changshu.

View drawn partsRequest a quote
Location
Changshu, Jiangsu, China
Site
5,000+ m² production site
Presses
25T to 500T
Listed certifications
ISO 9001 · ISO 14001 · IATF 16949

Product families

Two forming routes, two product families

Choose by geometry. Hollow, drawn bodies belong to Stamping and Drawing Parts. Flat and bent sheet-metal parts belong to Conventional Stamped Parts.

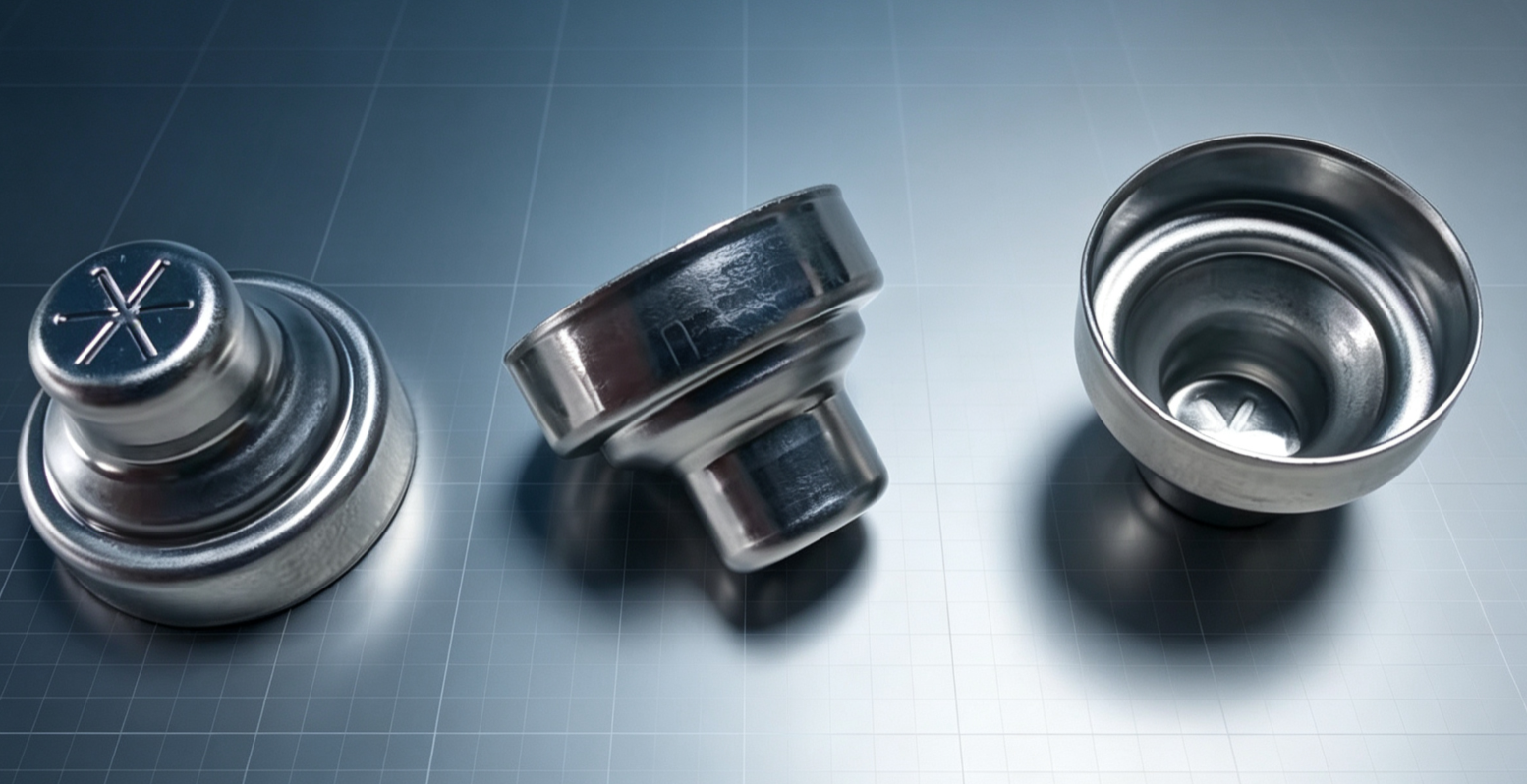

Three deep-drawn ignition tube sleeves: closed end with embossed mark, stepped side view and open end

Family 01

Stamping and Drawing Parts

Parts formed from a flat blank into a cup, sleeve, shell or cover. The wall is drawn in one piece, so the body has no weld seam.

Typical forms
  • Sleeves and tubes
  • Flanged bushings
  • End covers
  • Casings and shells
Suited to
  • Hollow, cylindrical or stepped geometry
  • Closed-end bodies and covers
  • Parts where a continuous wall matters
Explore Deep-drawn parts

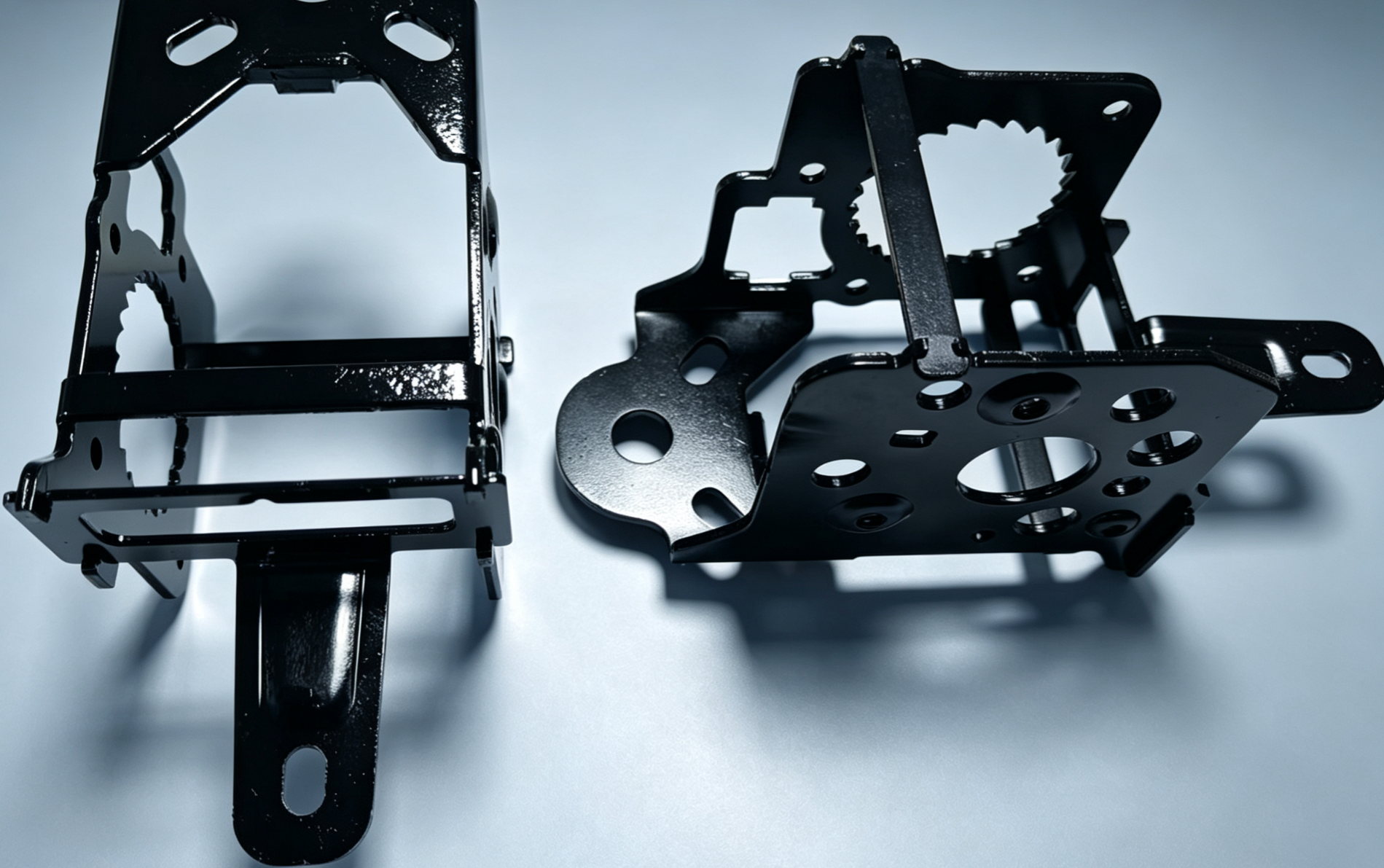

Two black coated automotive seat frame brackets with serrated cut-outs, slots and mounting holes

Family 02

Conventional Stamped Parts

Flat and formed sheet-metal parts made by blanking, piercing and bending. Brackets, plates, connectors and frames, including welded or assembled sets.

Typical forms
  • Brackets and support frames
  • Plates and connectors
  • Latches and locking parts
  • Welded sub-assemblies
Suited to
  • Flat or bent geometry with holes, slots and tabs
  • Structural brackets and mounting parts
  • Repeat production from progressive or transfer tooling
Explore Conventional stamping parts

Representative parts

  1. 01Ignition Tube Sleeve
  2. 02Flanged Bushing
  3. 03Deep-Drawn End Cover
  4. 04Motor Casing
  5. 05Stamped Bracket
  6. 06Car Seat Belt Connector
  7. 07Lock Plate
  8. 08Precision Latch
  9. 09Multifunctional Support Frame
  10. 10Automotive Seat Frame Bracket

Applications

Where the parts go

Sectors we build for, linked to the component types shown in our product range.

See all applications

Manufacturing

Tooling, presses and inspection under one roof

Parts are tooled, formed, welded, inspected, assembled and packed at our Changshu site.

Production site
5,000+ m²
Press range
25T to 500T
Monthly capacity, planning reference
300,000 pieces
Typical delivery, planning reference
About 15 days

Monthly capacity and delivery time are planning references. Actual figures depend on the part, tooling status, material, finish and order quantity.

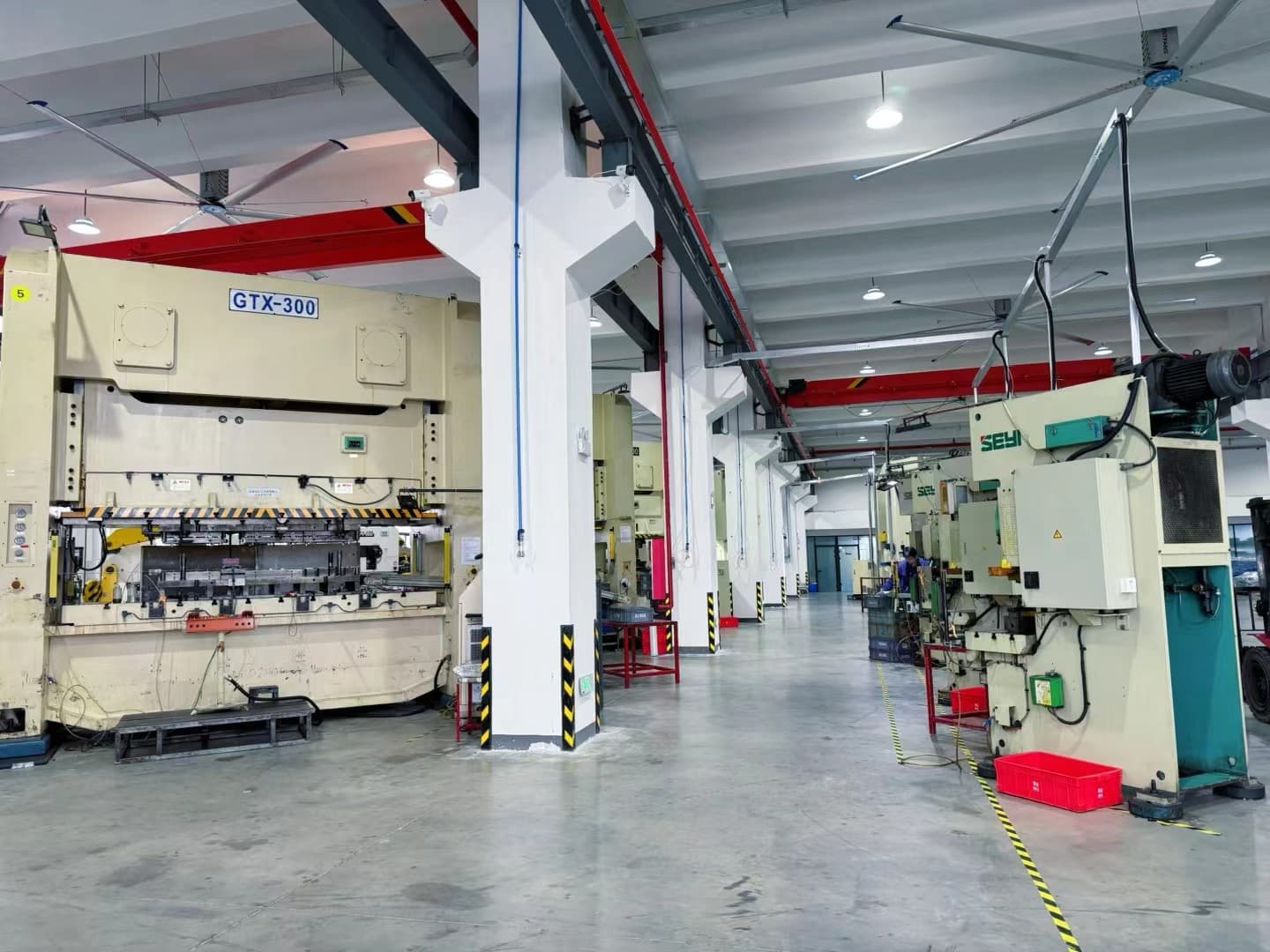

Press shop floor with a GTX-300 straight-side press on the left and a row of C-frame presses on the right
Press shop floor with straight-side and C-frame presses.

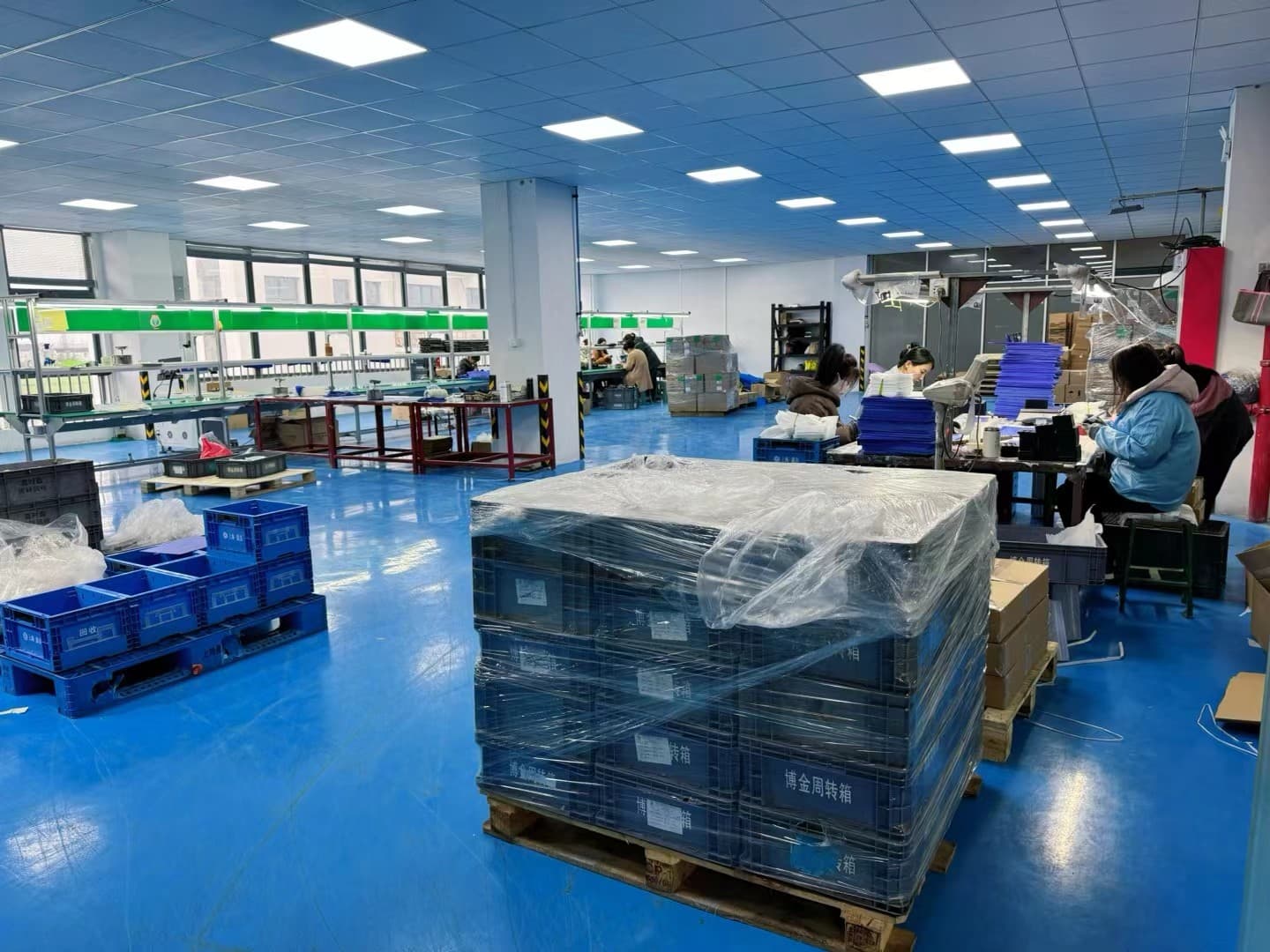

Assembly benches with operators and a wrapped pallet of blue turnover boxes in the packing area
Assembly benches and packing area.

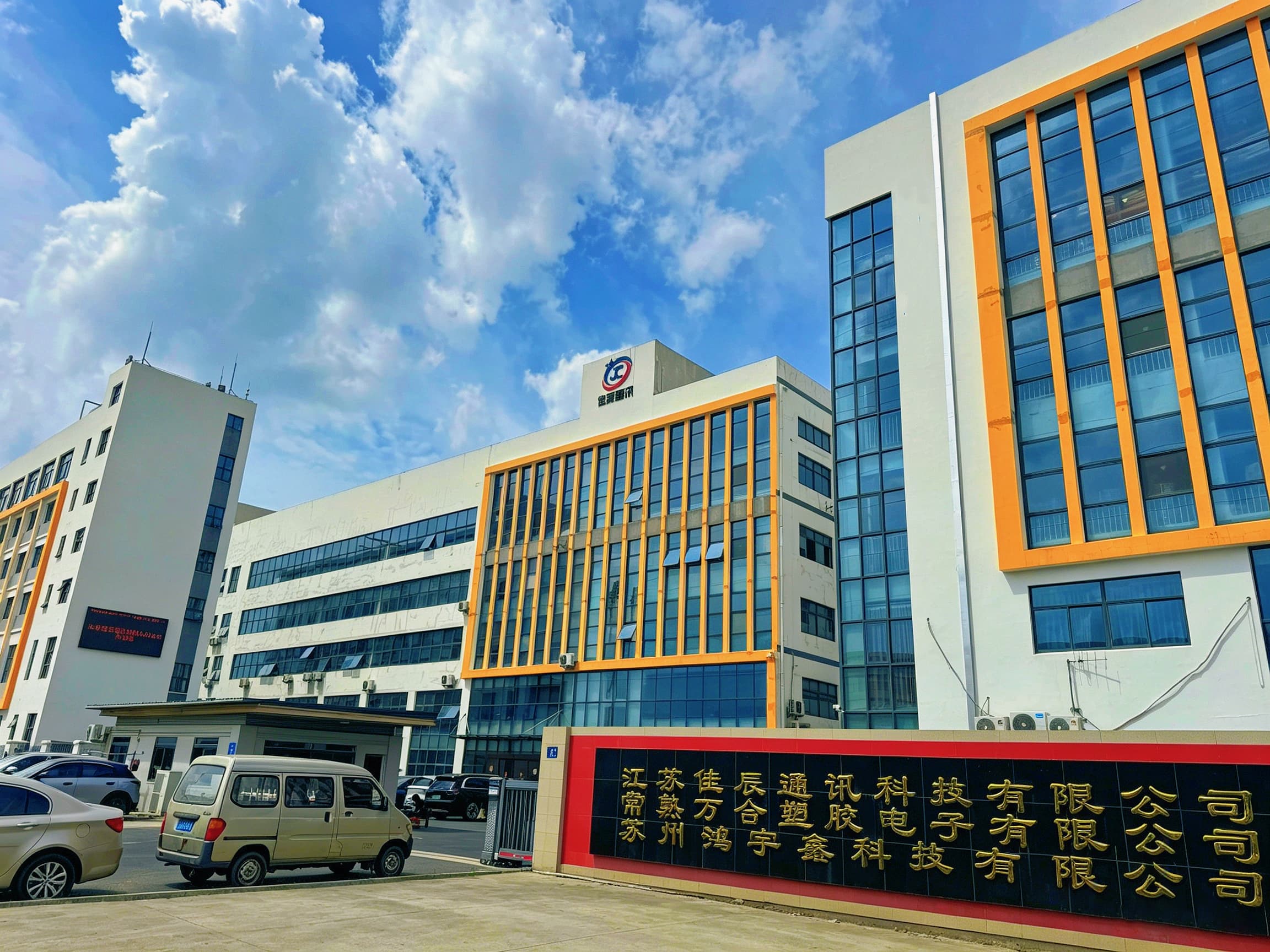

Exterior of the multi-storey building at the Zhitang Town site
The site in Zhitang Town, Changshu.
  • 01Tooling
  • 02Stamping and deep drawing
  • 03Wire cutting
  • 04Welding
  • 05Inspection
  • 06Assembly
  • 07Packing
Review Capabilities

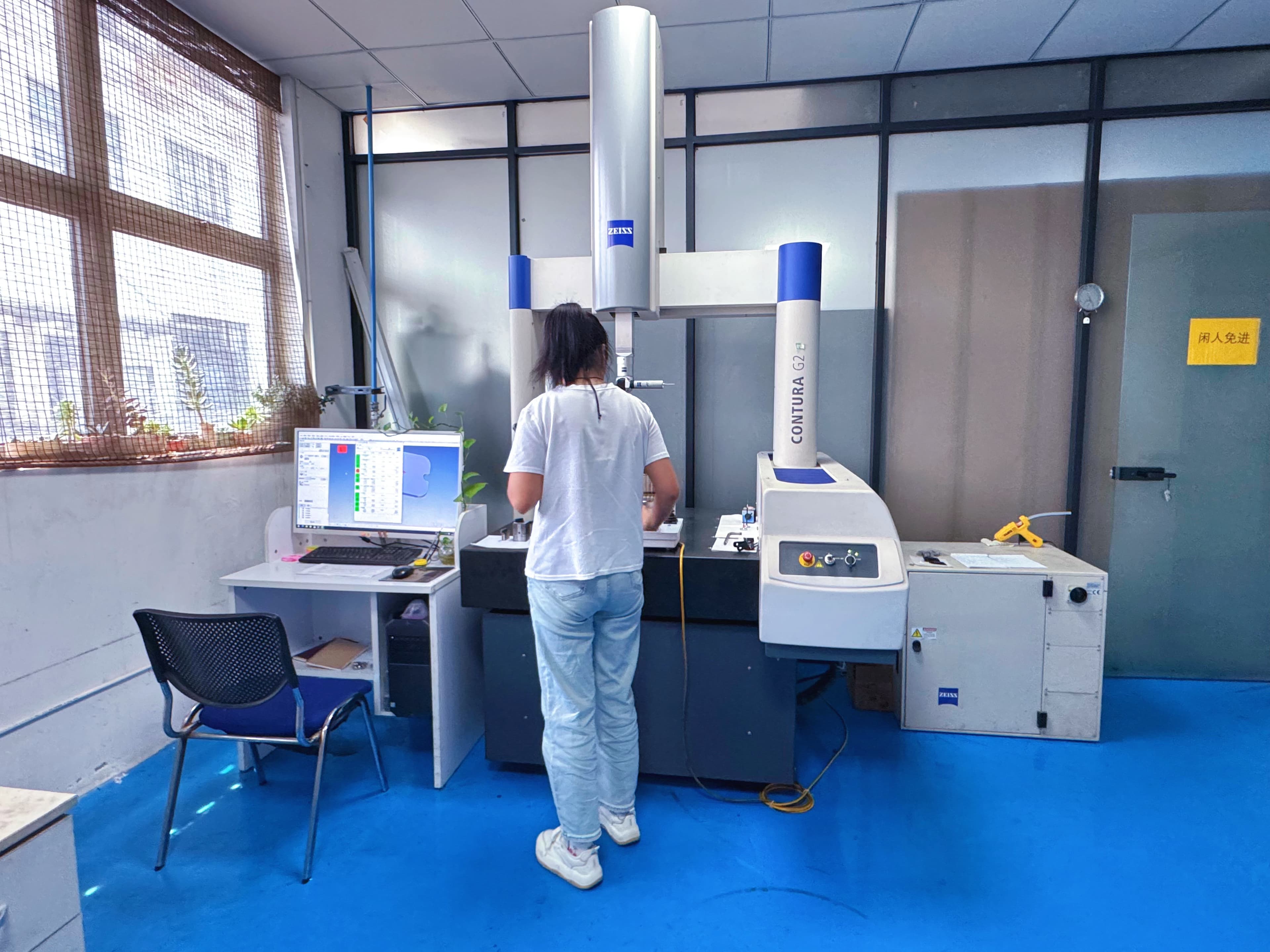

Inspector loading a part on a ZEISS CONTURA G2 coordinate measuring machine with results on the monitor
Coordinate measuring machine in the inspection room.

Quality

Measured against the drawing

Inspection is part of the process, not a final step. Parts are checked on a coordinate measuring machine, and you can ask for progress updates or third-party inspection.

Listed certifications

  • ISO 9001
  • ISO 14001
  • IATF 16949

Certificate scope, issuing body and validity are confirmed from the certificate documents during supplier review.

  • Coordinate measuring against your drawing
  • Production progress feedback on request
  • Third-party inspection supported
  • Samples available on request
Quality and inspection

How a project moves

From drawing review to packed parts

Five stages, handled at one site.

  1. Step 01

    Tooling

    Drawing and sample review lead into tooling work, supported by wire cutting.

  2. Step 02

    Stamping and deep drawing

    Parts are formed on presses from 25T to 500T.

  3. Step 03

    Secondary operations

    Welding and further operations are added where the drawing requires them.

  4. Step 04

    Inspection

    Parts are checked against the drawing, including coordinate measuring.

  5. Step 05

    Assembly and packing

    Parts are assembled where required, then packed for shipment.

Request a quote

Send what we need to review your part

A complete request shortens feasibility review. No price list or online checkout: each quotation is prepared per project.

  1. 01Drawing, sample or sketch of the part
  2. 02Material and finish requirement
  3. 03Annual or batch quantity, if known
  4. 04Application and critical features
  5. 05Inspection or sample requirements

Contact

Address
No. 8 Guangda Road, Zhitang Town, Changshu, Jiangsu, China
Send Requirements
